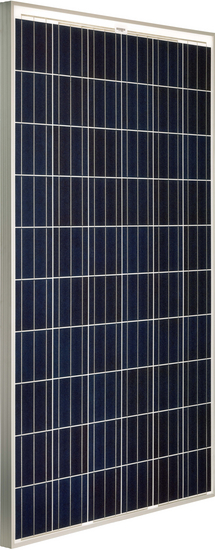

Тема: ND-RC250 (250 Вт, Поли)

http://assets.sharp.eu/product_images/960/img-p-ndrc250-260-side-960.jpg


Технические характеристики:

GeneralND-RC250
Nominal Output (Wp)250
Module Efficiency (%)15,2
Mechanical data
Cell size (mm)²156,5
No. of cells and connections60 in series
Dimensions (LxHxW) (mm)1660x990x50
Weight (kg)20
Maximum mechanical load (N/m2)2400
Electrical Characteristics
Open Circuit voltage Voc (V)37,5
Short circuit current Isc (A)8,76
Maximum power voltage Vpm (V)30,3
Maximum power current Ipm (A)8,24
System Voltage (V DC)1000
Thermal coefficients and characteristics
αPm (%/°C)-0,42
αIsc (%/°C)0,05
αVoc (%/°C)-0,31
Operating temperature (°C)-40 to 85° C
Storage temperature (°C)-
