Тема: ND-RJ265 (265 Вт, Поли)

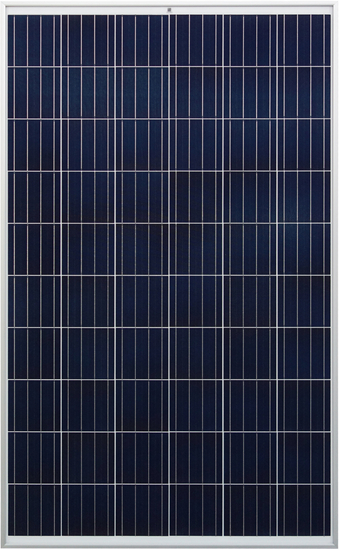

http://assets.sharp.eu/product_images/960/img-psharp-module-picture-ndrj260-265w-960.jpg

Технические характеристики:

GeneralND-RJ265
Nominal Output (Wp)265
Module Efficiency (%)16,2
Mechanical data
Cell size (mm)²156
No. of cells and connections60 in series
Dimensions (LxHxW) (mm)1654x989x40
Weight (kg)18,2
Maximum mechanical load (N/m2)2400
Electrical Characteristics
Open Circuit voltage Voc (V)31,04
Short circuit current Isc (A)8,61
Maximum power voltage Vpm (V)37,72
Maximum power current Ipm (A)9,06
System Voltage (V DC)1000
Thermal coefficients and characteristics
αPm (%/°C)-0,42
αIsc (%/°C)0,044
αVoc (%/°C)-0,32
Operating temperature (°C)-40 to 90° C
Storage temperature (°C)-
